The complete guide
A Practical Buying Guide to Stainless Steel Butt Hinges
A small hinge can decide how well a door works
A cupboard door that rubs or a box lid that sits crooked can make a simple piece of furniture frustrating to use. Replacing the hinge may help, but only when the new hardware matches the job. A similar appearance is not enough to confirm a good fit.
These QANQIUPLE stainless steel butt hinges are listed for small doors, wooden boxes, lids and related projects. They have a polished finish and a nominal 3 inch size. The supplier also lists dimensions of 7.6 cm by 5.1 cm and a thickness of 1.5 mm.
Those details give you a useful starting point. Before ordering, take a closer look at the door, its frame and the way the current hinge sits. A few careful checks now can save you from extra holes and a door that still will not close properly.
How a butt hinge works
A butt hinge joins two surfaces with a pair of leaves that turn around a shared pin. One leaf fixes to the door or lid. The other fixes to the frame or box. The joint lets the moving part swing while keeping it attached.
On some furniture, the leaves sit in shallow recesses. On other projects, they attach directly to the surface. The right arrangement depends on the furniture design and the clearance needed for movement.
Do not assume these folding cabinet hinges include extra closing features. The maker does not specify a spring, soft-close action or a lid-stay function. If you need a door to shut itself or a lid to remain open, look for hardware with those functions clearly stated.
Understand the size before comparing options

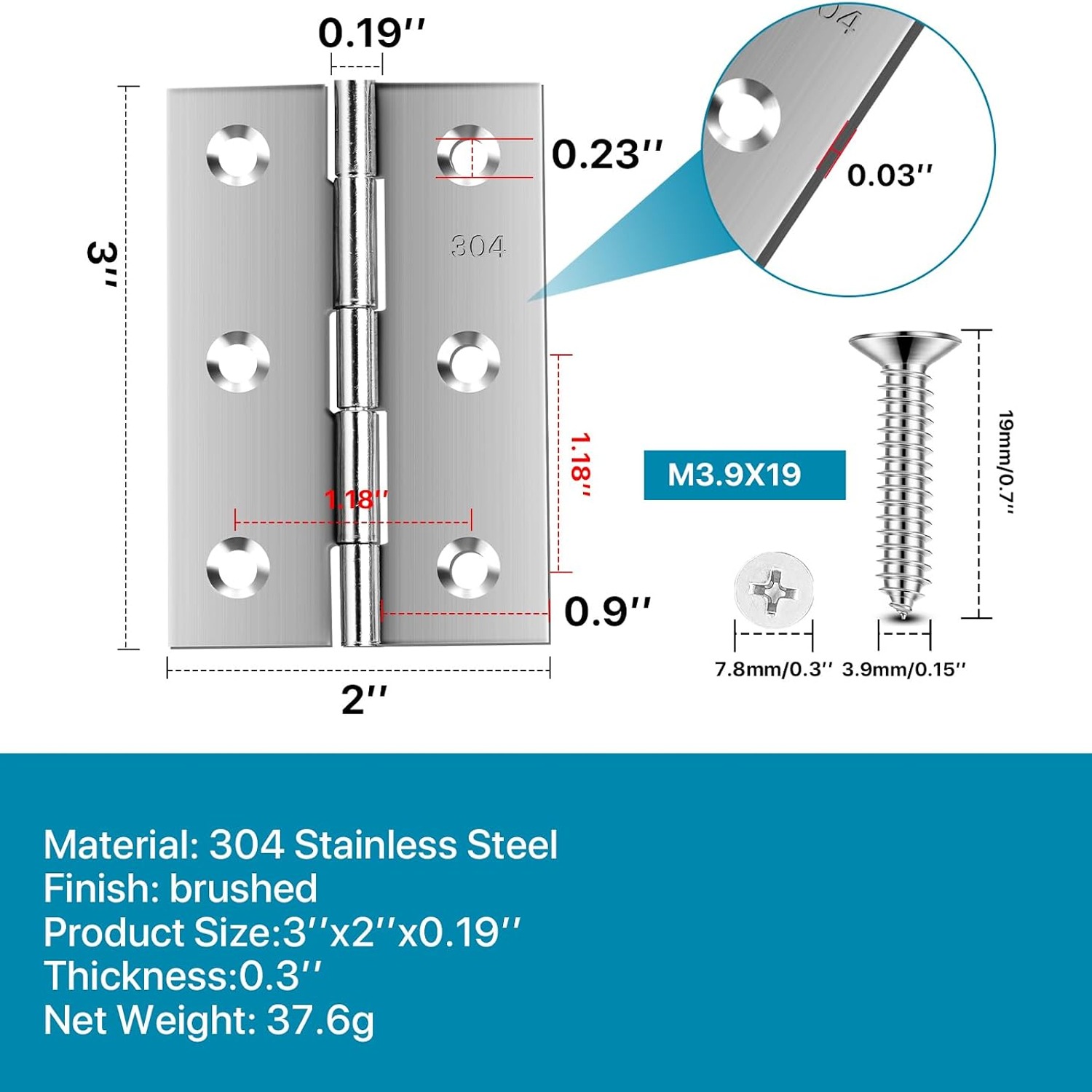

The term 3 inch butt hinges is a size guide, not a complete fitting plan. This listing gives dimensions of 7.6 cm long by 5.1 cm wide. It does not explain exactly how those measurements were taken or provide a hole-spacing drawing.
Measure your existing hinge in both its open and closed positions. Note the leaf size, the position of the pin and the space available around the door edge. If the hinge sits in a recess, measure that recess as well.
The listed thickness of 1.5 mm matters here. A replacement that sits too high or too low in an existing recess can change the gap around a door. Matching the broad length and width does not settle that issue.
For new work, make a simple drawing of the joint before drilling. It helps you see where the leaves and screw tips will sit.
Check the timber, not just the hardware
A hinge depends on its fixing points. Even suitable stainless steel cabinet hinges cannot correct crumbling timber or badly worn screw holes on their own.
Inspect the area where each leaf will attach. Look for splits, loose material or holes that no longer hold a screw firmly. If you are replacing hardware because a door has dropped, first work out whether the hinge is damaged or the fixing has failed.

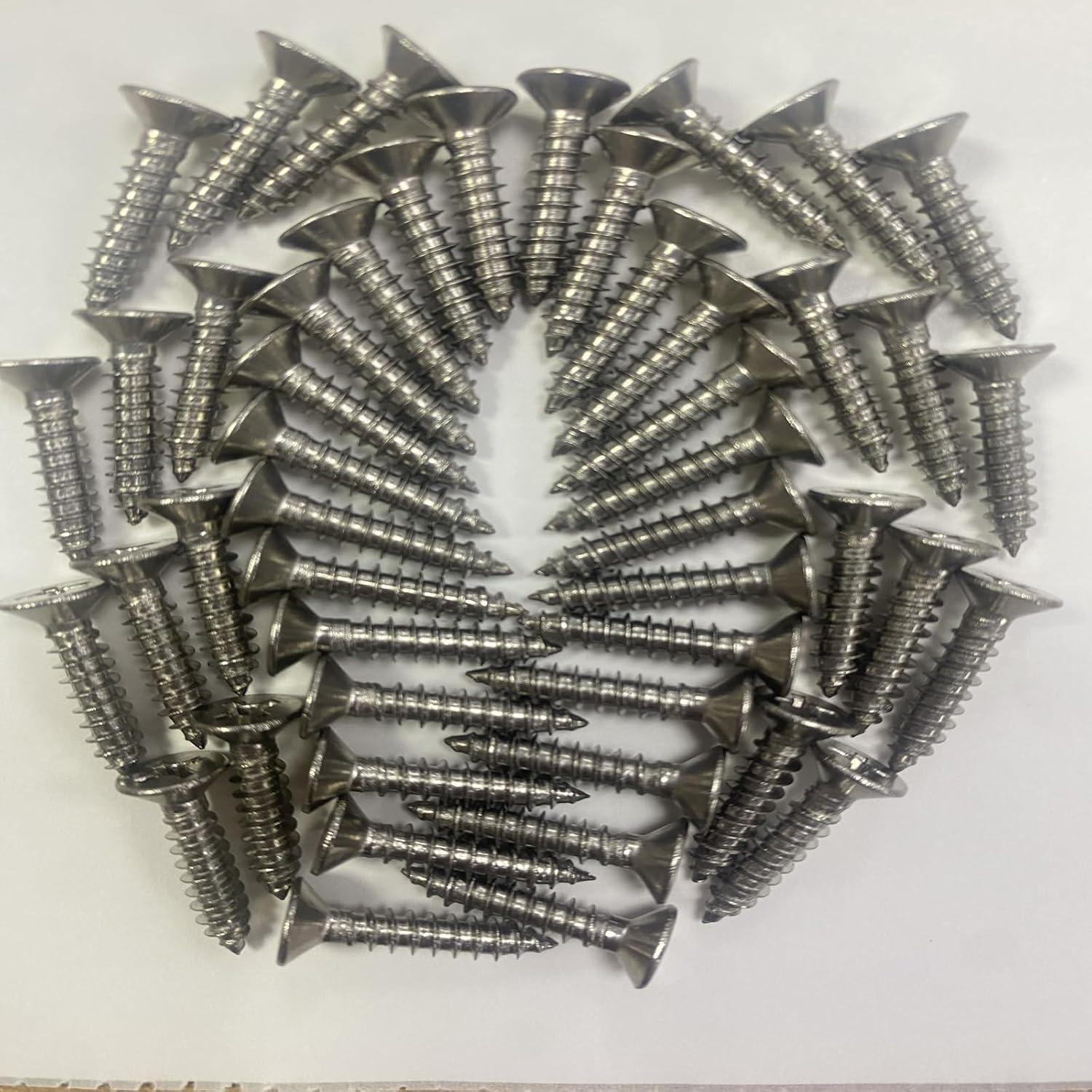

The supplier includes 24 screws and lists their size as M3.9 x 19. That does not mean they suit every door or box. Check their length against your material before fitting them.
Thin box walls need particular care. A screw that is too long may come through the outside face. If the supplied screws do not suit your project, get advice on suitable fixings rather than forcing a poor match.
Decide whether the application fits

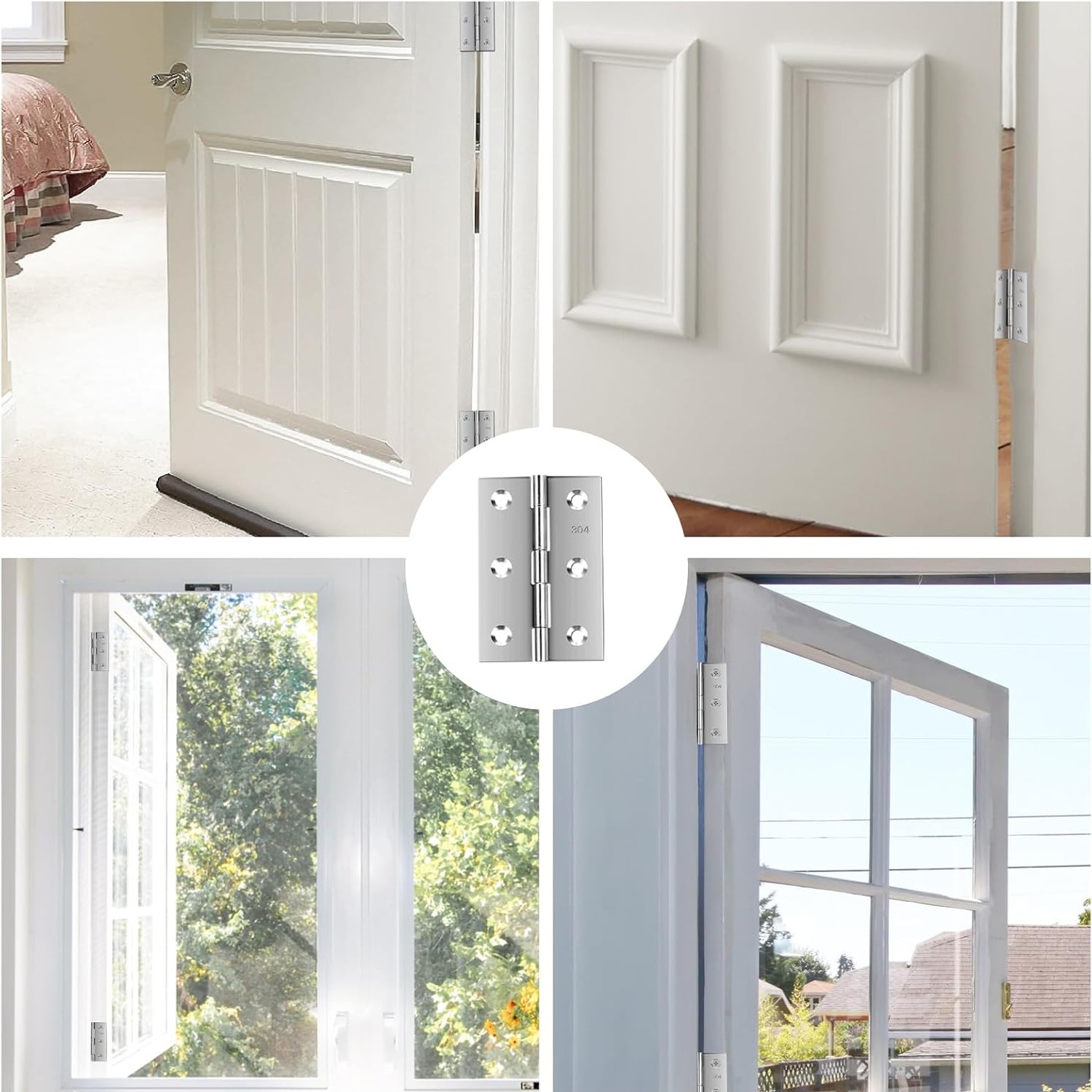

The supplier suggests these hinges for furniture doors, windows, cases, wooden boxes, lids and chests. These uses cover quite different loads and fixing arrangements, so each project still needs its own check.
For small cupboard hinges, consider the door's size and weight as well as its thickness. No load capacity is provided in the maker's listing. You cannot work out a safe door weight from the hinge dimensions alone.

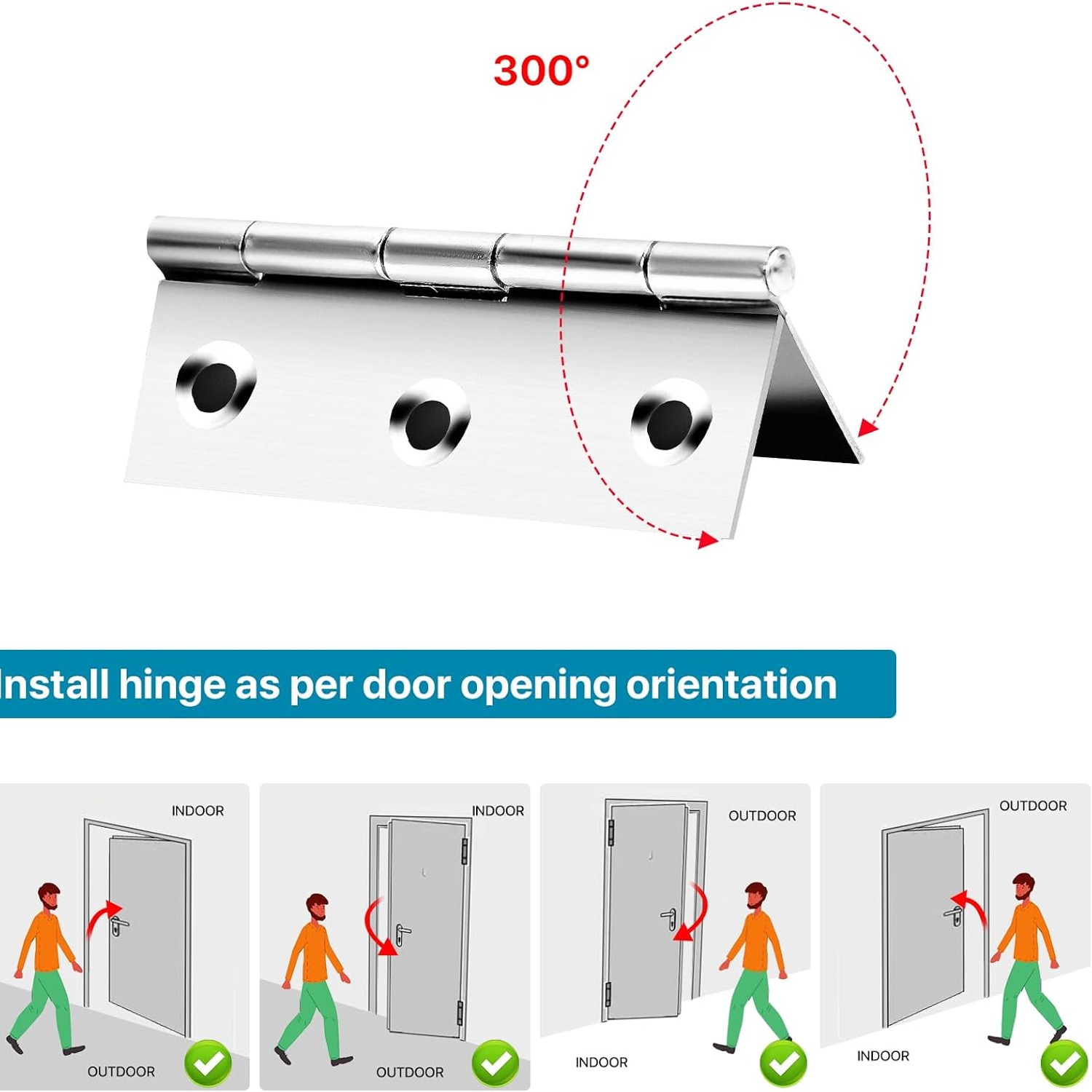

For wooden case hinges, consider how far the lid needs to open and whether anything behind the box could block it. The listed information does not give an opening angle.
Windows and animal enclosures may have extra safety or weather-exposure needs. A suggested use in a supplier listing is not a tested rating for every version of that project.
Give lids their own safety check
Chest lid hinges deserve more thought than a quick size comparison. A lid can fall if it has no suitable support, and a basic hinge should not be treated as a device that holds it open.
This product record does not specify controlled closing, a stay-open position or an opening stop. If a lid needs those features, plan the appropriate additional hardware before starting.
Think about how the box will be used. Will someone reach inside while the lid is raised? Could a child use it? Is the lid awkward to hold with one hand?
These questions help you choose the full arrangement, rather than asking the hinge to do a job it was not described as doing. Seek advice if you are unsure how to support a lid safely.
What the material and finish tell you
The specifications describe stainless steel, while the supplier details identify it as grade 304. The finish is listed as polished. That makes polished butt hinges worth considering when the hardware will remain visible on the finished piece.
However, a material description does not answer every durability question. No outdoor exposure rating, corrosion test result or material certificate is included in the maker's listing.
If you are choosing 304 stainless steel hinges for an outdoor box or a damp location, ask for confirmation that the product suits those conditions. Coastal exposure also needs more than a general stainless steel label.
For indoor furniture, compare the visible finish with nearby handles and fittings. A polished hinge can look different from brushed or painted hardware, even when both are described as silver.
Confirm the pack contents before planning

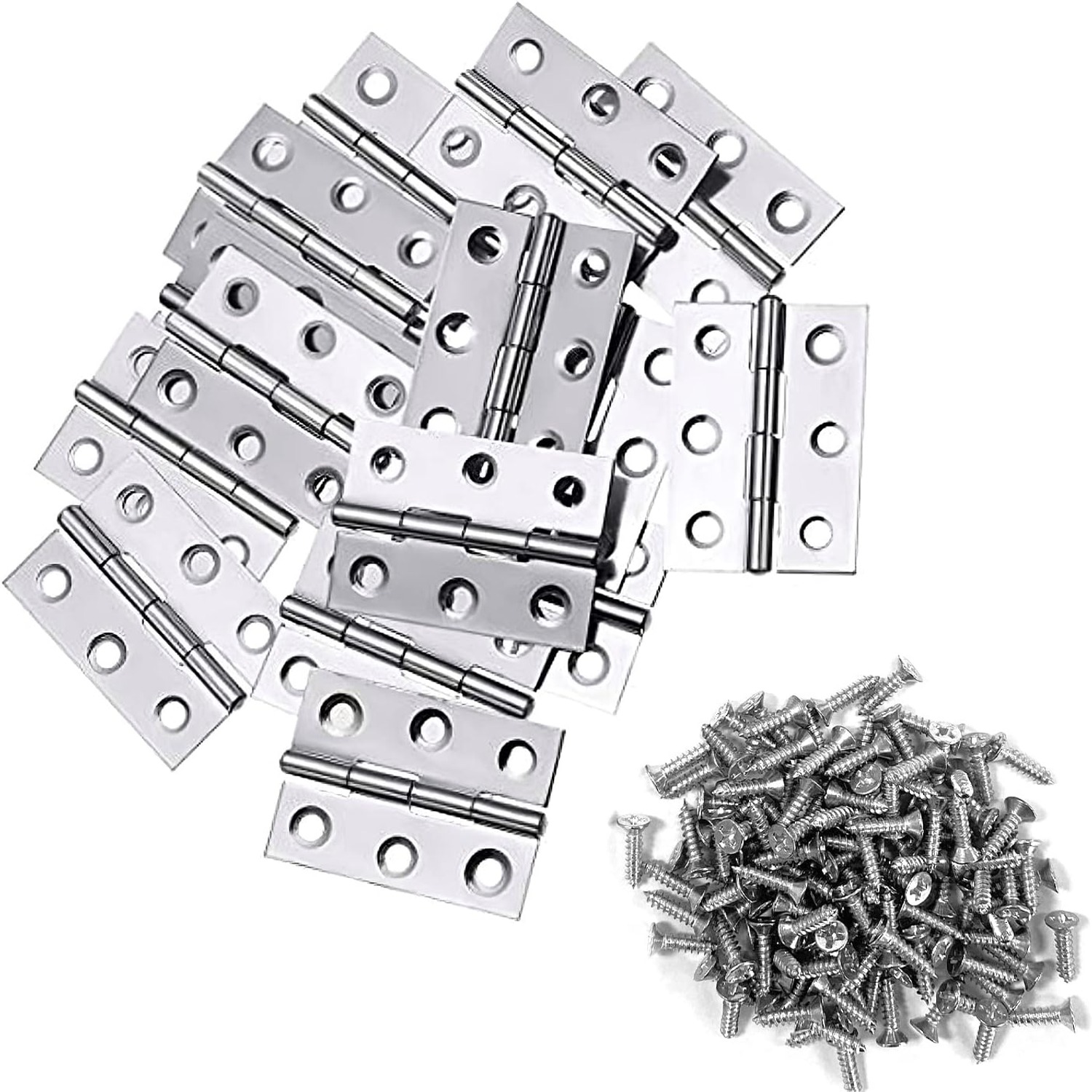

The supplier lists a total unit count of 28 and separately states that 24 screws are included. The number of hinges is not stated on its own.
It may be tempting to subtract the screws from the total and treat the result as a confirmed hinge count. Do not base your project order on that assumption. Ask for the pack contents to be confirmed.
This matters if you are repairing several doors or want matching hinges across a set of boxes. Knowing the exact quantity lets you plan without leaving part of the job unfinished.
The listed weight is 60 g, but the maker does not say whether it refers to one hinge or the whole set. It should not be used to work out the pack quantity.
Prepare for a careful installation
Before removing old hardware, support the door or lid so it cannot drop or twist. Take a photo of the original hinge positions if that will help you put the parts back in place.
Compare the replacement with the old hinge before making changes. Check the hole pattern, leaf thickness and pin position. Cabinet door replacement hinges can share a nominal size yet still need different fixing positions.
Mark the new positions carefully and use a drilling method suited to the material. If pilot holes are needed, choose them for the screw and timber involved. The maker does not provide a drill size.
Check movement as you work. The door or lid should move without forcing the joint. If something binds, stop and inspect the alignment rather than tightening harder.
Keep the finish clean and the fixings sound
For routine care, wipe the hinges with a soft cloth and dry them after cleaning. Avoid abrasive pads and harsh cleaning products that could mark the polished surface.
Look at the fixing screws from time to time, especially after a new installation has been used for a while. A changing gap or rubbing edge can be a sign that something needs attention.
Support the moving part before adjusting screws. If a screw keeps loosening, check the fixing point instead of repeatedly tightening it into damaged material.
No special maintenance schedule or lubricant is specified in the maker's listing. If movement becomes stiff or noisy, inspect for rubbing and ask for suitable care advice before applying a product.
The short version
The best furniture repair hinges are the ones that fit the furniture and its use. These QANQIUPLE hinges offer a listed 3 inch format, polished stainless steel construction and included screws for compatible projects.
Compare the 7.6 cm by 5.1 cm dimensions and 1.5 mm thickness with your needs. Check the timber, screw length and door clearance. Confirm the hinge quantity before ordering.
For heavy doors, outdoor exposure or lids that must stay open, get the missing information or choose hardware with the required rating and function clearly stated. A careful match is more useful than a quick purchase.
